Making Micro Animations with CSS

I’ll start this tutorial with an example of what a micro animation is and then explain how I created my own. You’re probably already familiar with Twitter’s “heart” animation every time you press the like button:

Image for post
Image for post

You can create a popup notification to let user know an action has occurred. But there is something about confirming an action with a micro animation.

I don’t know if micro animations actually invoke real feelings of empathy. But upon my research I’ve discovered following properties of micro animations:

  • 1. They can add personality to your app.
  • 2. They are a technical challenge that requires writing custom code.
  • 3. Can invoke a feeling of an event having occurred.

When I was working on Semicolon project I experimented with 3 micro animations:

  • Airplane: for invoking “post message” dialog.
  • Rocket: button for sending the message.
  • Trash bin: animation for deleting posted messages.

Using frameworks or libraries is not the point of this tutorial. You can easily adapt the code from this tutorial to your favorite library. Some people still use vanilla on the front-end but it shouldn’t be difficult to port this code to libraries like React. So I’ll just show the basic principles I used when creating them.

Below I’ll show animated examples together with the source code.

Airplane

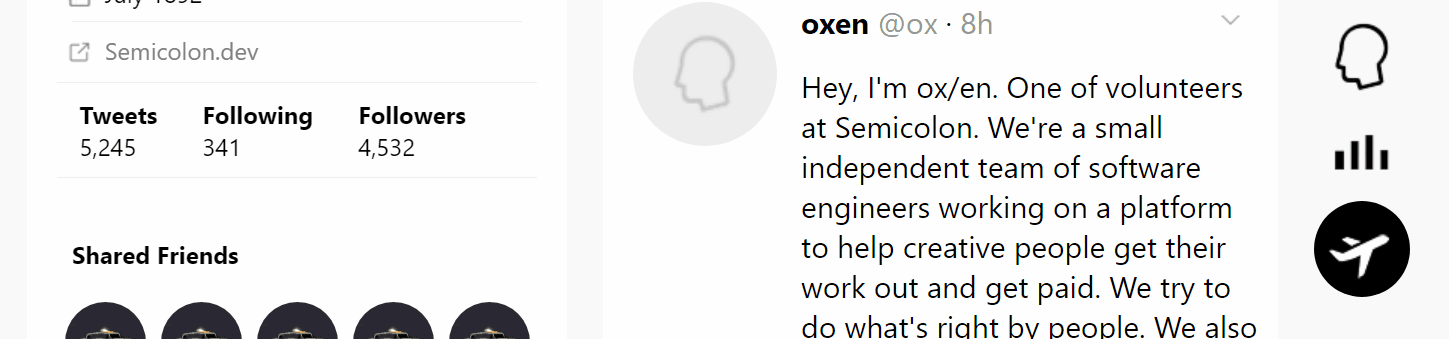

The airplane button was inspired by Twitter’s “start message” button. But instead of a feather pen icon I decided to animate an airplane:

Image for post
Image for post

I won’t show entire CSS flex layout code. Only the important parts that make this animation work. I used CSS transition to move the airplane diagonally. The trick is the airplane background image actually has 2 planes on it:

Image for post
Image for post

Airplane background is a 190px x 190px image with 2 airplanes. You might want to use a transparent background to support different color themes. This image will be cropped inside main button container with id #container

The HTML is straightforward. It consists of a container element and the plane:

<div id=”container”>
<div id=”airplane”></div>
</div>

Here’s the CSS setup:

// Button container for #airplane element
#container {
// Add rounded corners
border-radius: 50%;
background: black;
// Crop the airplane image
overflow: hidden;
}
#airplane {
position: absolute;
// Align the airplane with the center of the element
top: -76px;
left: -76px;
width: 190px;
height: 190px;
background: url(‘airplanes.png’) 8px 8px no-repeat;
// This animation lasts half a second
animation-duration: 0.5s;
// Use single animation
// normal is opposite of “reverse”
// (you can use multiple values separated by comma)

animation-direction: normal;
}
// Name the keyframe
@keyframes flown {
from { top: -76px; left: -76px }
to { top: -102px; left: -6px }
}

CSS animations are named using @keyframes rule. Name the animation (in this case “flown”) and add a list of transitions to be played using from and to keywords.

@keyframes flown {
0% { top: -76px; left: -76px }
100% { top: -102px; left: -6px }
}

However, as shown above you could also use percentages.

To make more complex animations, you can use more states in between:

@keyframes example {
0% { }
25% { }
50% { }
75% { }
100% { }
}

Add CSS into brackets and the animation will smoothly transform between all of the styles in the brackets. (In this example we don’t need all that complexity and only two animation check points will be used.)

Later, by setting element.style.animationName property to “flown” will automatically trigger the CSS animation on given element.

The animation-direction: normal ensures animation is played forward. You can specify multiple values like normal, reverse to play multiple animations consequently in different directions. But we don’t need that here.

Animating Micro Animations

Well, this isn’t the only way to animate your micro animation UX. But it’s the one that works for this simple example.

CSS elements with transition property will automatically animate CSS properties to new values when you apply another class to that element.

But similarly, when using CSS animation (like in this example) you can assign animation name to animationName property (or reset it to null to remove it):

// Helper utility for selecting elements (similar to jQuery syntax)
// Use $ and $$ instead of dinosauric document.querySelector

let $ = selector => document.querySelector(selector);
let $$ = selector => document.querySelectorAll(selector);
// Somewhere in initialization step add this state:
let flying = false;
/* Your DOM just loaded */
window.addEventListener(‘DOMContentLoaded’, event => {
// Once DOM finished loading, add click event to the button:
if ($(“#container”)) $(“#container”).addEventListener(“click”, E=>{
// If clicked more than once too fast,
// don’t trigger action again until animation completes

if (!flying) {
// Make sure animation can’t be triggered again until it ends
flying = false;
// Trigger the animation
$(“#airplane”).style.animationName = “flown”;
// Remove animation
setTimeout(E => {
// Remove animation from element
$(“#airplane”).style.animationName = null;
// Animation is completed, reset state
flying = false;
}, 800);}
});
});

This could have been done with CSS transitions too. And to be honest that’s probably a better option in this example. But that’s just the way it was done.

You can use either way.

Rocket

The rocket ship is for posting a message.

To me it feels a lot like “launching” a tweet. It makes your message feel more important because it feels like it’s going to land on the Moon or Mars.

Image for post
Image for post

This micro animation uses exactly the same code as the airplane one. Except the CSS is a bit different. Airplane had to move in two dimensions. Here we only animate top property to move the rocket ship upward.

Secondary animation to move stars for creating a “flying rocket” effect was done simply by animating position of a star pattern image in opposite direction using the same techniques.

Here is the starfield background image.

Image for post
Image for post

It can definitely be improved — maybe in the future — but I was pleased with the effect so far. In my opinion it accomplishes the purpose of making user “feel” like something is happening or has happened.

And that’s the 🗝️ to micro animations.

Trash Bin

Finally, probably my favorite micro animation so far.

I use it when a message is deleted to indicate Mongo.deleteOne method has successfully completed the delete action on the back-end.

Image for post
Image for post

How was it created? I’ll start with my CSS setup:

.trash-dot {
position: absolute;
display: block;
top: -10px;
left: 15px;
width: 10px;
height: 10px;
background: gray;
border-radius: 50%;
transition: 0.6s;
}
.trash-dot.fall {
top: 100px;
}

This time I used CSS transitions. Just to demonstrate another popular way of making micro animations for your UX.

Every time a “tweet” is deleted, the tweet container element’s innerHTML is used to replace its content to a trash bin with 3 trash particles.

There is a back-end part to this. But it won’t be shown here. Just the front-end:

// The fetch call to the Express/Mongo database
Tweet.delete = (token, userid, tweetid) => {
// Get tweet’s element by userid and tweetid
const element = $(`#tweet_${userid}_${tweetid}`);
// Calculate tweet’s dimensions
const width = element.offsetWidth;
const height = element.offsetHeight;
// Apply width and height to element’s style
// to keep its original dimensions after innerHTML
// clears out the element’s contents
element.style.width = `${width}px`;
element.style.height = `${height}px`;
element.className = ‘tweet f v h r rel tweet-sep-bottom’;
// Replace the tweet’s HTML contents with trash icon
element.innerHTML = `<div class = “f v h c” id = “trash_${tweetid}”>
<div style = “position: relative; display: block; width: 40px; height: 75px; overflow: hidden;”>
<div class = “t1 trash-dot”></div>
<div class = “t2 trash-dot”></div>
<div class = “t3 trash-dot”></div>
</div>
<div style = “position: relative; width: 40px; height: 40px; background:url(https://semicolon.dev/static/trash1.png) no-repeat”>
<div style = “position: absolute; top: 0px; left: 0; width: 40px; height: 40px; background:url(https://semicolon.dev/static/trash2.png) no-repeat”></div>
</div>
</div>`;
// Add “.fall” class to trigger transition for each trash particle:
setTimeout(x => {
console.log(1);
$(`#trash_${tweetid} div div.t1`).className = ‘t1 trash-dot fall’;
}, 0);
setTimeout(x => {
console.log(2);
$(`#trash_${tweetid} div div.t2`).className = ‘t2 trash-dot fall’;
}, 200);
setTimeout(x => {
console.log(3);
$(`#trash_${tweetid} div div.t3`).className = ‘t3 trash-dot fall’;
}, 400);
// Remove the element containing the “tweet” from DOM
setTimeout(x => {
element.style.display = ‘none’;
}, 800);
fetch(`https://${Site.www}semicolon.dev/api/tweet/delete`, make(payload)).then((response) => response.json().then(json => {
console.log(json);
if (json.success) {
console.log(`Tweet was deleted.`);
} else {
console.log(`Tweet cannot be deleted.`);
}
}));
}

Keep in mind this is just a vanilla JavaScript example. No frameworks. It’s not even the best way to do it. And the animation will play regardless of whether Mongo call succeeds (although in 99% of cases it will anyway.)

I would recommend against using setTimeout for animations. Moving this code to just CSS would be the right thing to do.

Conclusion

You don’t always have to use frameworks or libraries. This is true especially if you’re just learning and practicing. But it shouldn’t be hard to replicate these micro animations in React or Vue, especially if you’re already familiar with them.

Hope you enjoyed this tutorial, I had fun making it!
